GRAPHML service module

The service module returns a GRAPHML document containing the current topic and all it's associated topics. The service handle is graphml. To use the module ensure it's enabled in the configuration panel of embedded HTTP server and start the server. An example request is

http://127.0.0.1:8898/graphml

Adding an URL parameter topic to the request with a subject identifier or basename value returns addressed topic. URL parameters si and sl can also be used to fetch a topic with a subject identifier or locator. Requesting an URL

http://127.0.0.1:8898/graphml?topic=http://www.wandora.org/core/wandoraclass

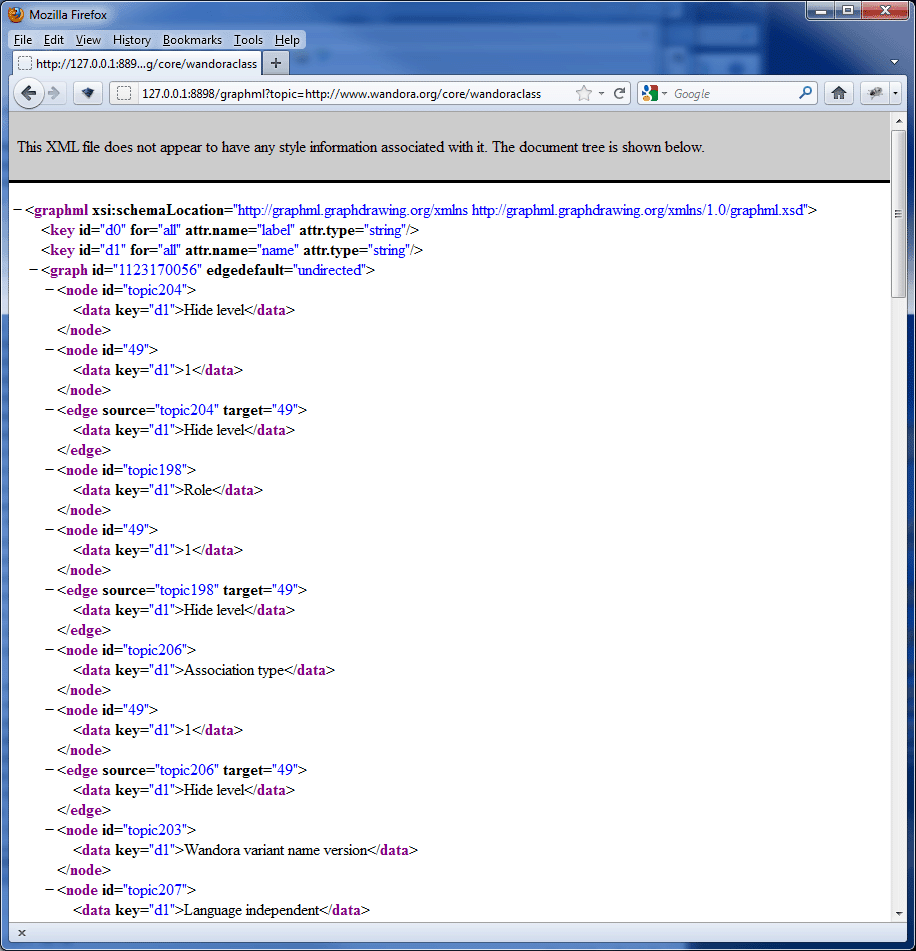

returns a page that looks something like the screen capture below.
